Rotary Actuators Rack & Pinion Type

Mã sản phẩm:
Tình trạng: Còn hàng

Liên hệ
Liên hệ

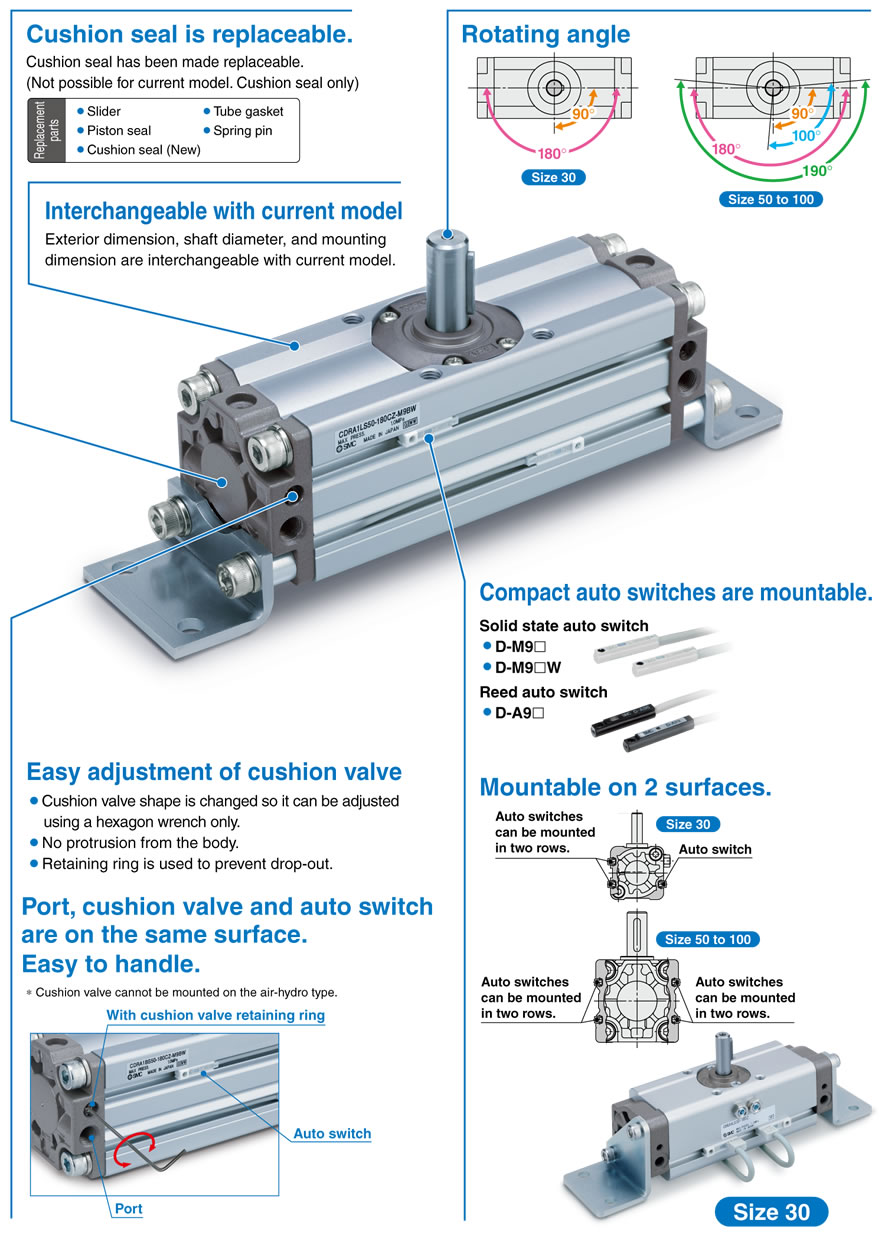

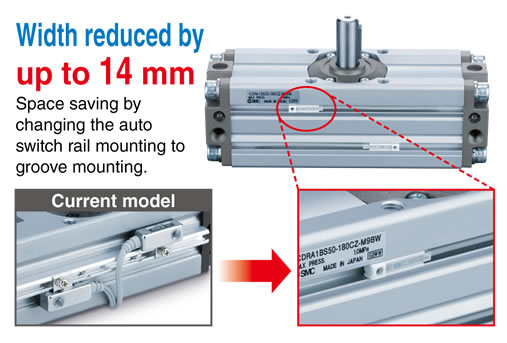

Compact auto switches are mountable.

Compact auto switches are mountable.(D-M9□)

Compact auto switches are mountable
on 2 surfaces.

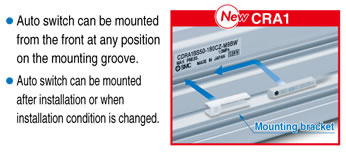

Auto switch can be mounted from the front.

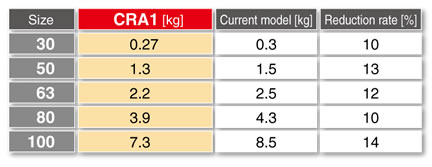

■Weight is reduced by up to 14%, Mounting interchangeable with the current model.

Lightweight body by changing the body and the cover shape.

■Cushion, Rotating angle

Rotating angle 90°, 100°, 180°, 190°

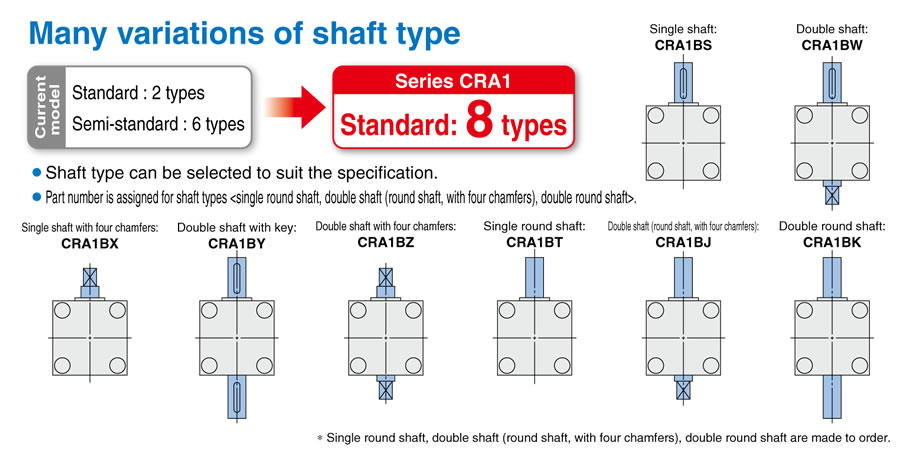

■Many variations of shaft type

Standard: 8 types (Current model/Standard : 2 types, Semi-standard : 6 types)

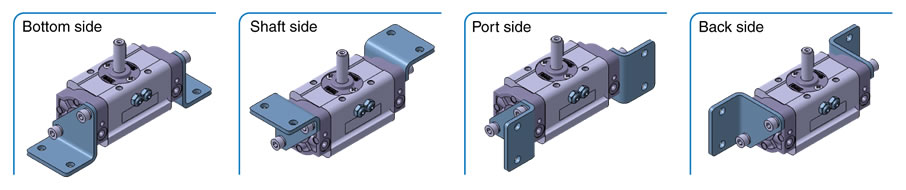

■Mounting suitable for operating conditions is possible.

Foot bracket can be mounted at a desired position.
(Foot bracket is included in the rotary actuator at shipment.)

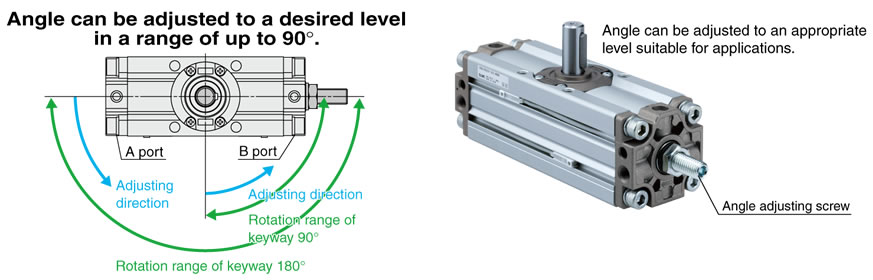

■Angle adjustable type

Angle can be adjusted to a desired level in a range of up to 90°.

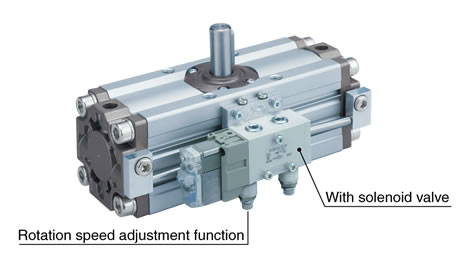

■With solenoid valve

・Solenoid valve and rotation speed adjustment function are integrated.
・Part number is set for the angle adjustable type.
