SF/F
Direct Reading Torque Wrench/Inspection
Inspections
Beam
Direct Reading
Direct reading type for tightening and measuring.
F92N[Overall length 400 mm]
SF6N [Overall length 205 mm]
Application
-
For inspection or tightening.
Features
-
Classic style torque wrench.
-
Simple direct-reading beam type torque wrench.
-
Light weight, easy-to-read scale, suitable for inspection.
-
Graduated in clockwise and counterclockwise directions, and applicable for retightening and loosening torque inspection methods.
-
The unique shape of the arm is designed to keep the internal force at stable level without any friction, which contributes to enhanced durability.
-
F model grip is shaped to conform to the hand in order to prevent slipping.
-
Applicable for international use including the EU region.
-
Compliant with calibration procedures of ISO 6789 Type I Class A.
Specifications
|
Accuracy ±3% |
|
|
S.I. MODEL |
SF40CN |
SF70CN |
SF1.5N |
SF3N |
SF6N |
SF12N |
F23N |
F46N |
|
TORQUE RANGE
[cN･m/N･m] |
MIN.～MAX. |
cN･m 8～40 |
10～70 |
N･m 0.2～1.5 |
0.5～3 |
0.6～6 |
2～12 |
3～23 |
5～46 |
|
|
GRAD. |
cN･m 2 |
N･m 0.05 |
0.1 |
0.2 |
0.5 |
1 |
|
|
METRIC MODEL |
4SF |
7SF |
15SF |
30SF |
60SF |
120SF |
230F |
460F |
|
TORQUE RANGE
[kgf･cm/kgf･m] |
MIN.～MAX. |
kgf･cm 0.8～4 |
1～7 |
2～15 |
5～30 |
6～60 |
20～120 |
30～230 |
50～460 |
|
|
GRAD. |
kgf･cm0.2 |
0.5 |
1 |
2 |
5 |
10 |
|
|
AMERICAN MODEL |
4SF-A |
7SF-A |
15SF-A |
30SF-A |
60SF-A |
120SF-A |
230F-A |
460F-A |
|
TORQUE RANGE
[lbf･in/lbf･ft] |
MIN.～MAX. |
lbf･in 0～3.4 |
0～6 |
0～13 |
0～26 |
0～50 |
0～100 |
0～200 |
0～400 |
|
|
GRAD. |
lbf･in 0.2 |
0.5 |
1 |
2 |
5 |
10 |
|
APPLICABLE BOLT
(REFERENCE) |
STEEL |
M2(M2.2) |
M2.5,M3 |
(M3.5) |
M4(M4.5) |
M5,M6 |
(M7) |
M8 |
M10 |
|
|
HIGH TENSION |
(M1.8)M2 |
(M2.2)M2.5 |
M3(M3.5) |
M4 |
M4(M4.5) |
M5,M6 |
(M7) |
M8 |
|
|
MAX. HAND FORCE P [N] |
4.1 |
5.9 |
11.7 |
18.9 |
32.8 |
57.8 |
92.9 |
155 |
|
DIMENSION
[mm] |
EFFECTIVE LENGTH (L) |
100 |
120 |
130 |
160 |
185 |
210 |
250 |
300 |
|
|
OVERALL LENGTH (L') |
115 |
135 |
145 |
175 |
205 |
235 |
295 |
355 |
|
|
HEIGHT (M) |
24.2 |
26.2 |
28.2 |
30.2 |
47.5 |
50.5 |
60 |
65 |
|
|
WIDTH (B) |
50 |
54 |
56 |
74 |
84 |
90 |
104 |
|
|
SCALE SPAN (δ) |
20.4 |
22.4 |
26.7 |
31.9 |
34.8 |
38.7 |
|
|
SQ. DRIVE (a) |
6.35 |
9.53 |
|
|
SQ. DRIVE (b) |
7.5 |
11 |
|
|
HEAD (h) |
22.7 |
24.7 |
26.7 |
28.7 |
35.1 |
40.1 |
50.6 |
55.6 |
|
|
HEAD (R) |
5 |
6 |
8 |
8.5 |
9.5 |
10.5 |
|
|
HOOK (d) |
8 |
10 |
11 |
12 |
16 |
20 |
26 |
|
|
HOOK (ℓ ) |
|
70 |
90 |
|
|
WEIGHT [kg] |
0.04 |
0.05 |
0.07 |
0.09 |
0.2 |
0.25 |
0.4 |
0.6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Accuracy ±3% |
|
S.I. MODEL |
F92N |
F130N |
F190N |
F280N |
F420N |
F560N |
F700N |
F850N |
F1000N |
TORQUE RANGE
[cN･m/N･m] |
MIN.～MAX. |
10～92 |
20～130 |
30～190 |
50～280 |
70～420 |
100～560 |
100～700 |
100～850 |
100～1000 |
|
GRAD. |
2 |
5 |
10 |
20 |
|
METRIC MODEL |
920F |
1300F |
1900F |
2800F |
4200F |
5600F |
7000F |
8500F |
10000F |
TORQUE RANGE
[kgf･cm/kgf･m] |
MIN.～MAX. |
100～920 |
200～1300 |
300～1900 |
kgf･m 5～28 |
7～42 |
kgf･cm 1000～5600 |
1000～7000 |
kgf･m 10～85 |
10～100 |
|
GRAD. |
20 |
50 |
kgf･m 0.5 |
1 |
kgf･cm100 |
kgf･m 2 |
|
AMERICAN MODEL |
920F-A |
1300F-A |
1900F-A |
2800F-A |
4200F-A |
5600F-A |
7000F-A |
8500F-A |
10000F-A |
TORQUE RANGE
[lbf･in/lbf･ft] |
MIN.～MAX. |
lbf･ft 10～66 |
10～95 |
25～135 |
30～200 |
30～300 |
50～400 |
50～500 |
60～600 |
70～700 |
|
GRAD. |
lbf･ft 2 |
5 |
10 |
20 |
APPLICABLE BOLT
(REFERENCE) |
STEEL |
M12(M14) |
M16 |
(M18) |
M20 |
(M22) |
M24 |
(M27) |
M30 |
|
HIGH TENSION |
M10 |
M12 |
(M14) |
M16 |
(M18) |
M20 |
(M22) |
M24 |
|
MAX. HAND FORCE P [N] |
269 |
345 |
450 |
564 |
568 |
677 |
680 |
686 |
DIMENSION
[mm] |
EFFECTIVE LENGTH (L) |
345 |
380 |
425 |
500 |
750 |
840 |
1055 |
1285 |
1512 |
|
OVERALL LENGTH (L') |
400 |
445 |
490 |
565 |
825 |
945 |
1175 |
1410 |
1640 |
|
HEIGHT (M) |
76 |
77.5 |
81 |
92 |
71 |
75 |
82.6 |
|
WIDTH (B) |
110 |
115 |
120 |
130 |
152 |
|
SCALE SPAN (δ) |
42.5 |
44.2 |
49.3 |
50.5 |
51.0 |
62.5 |
|
SQ. DRIVE (a) |
12.7 |
19.05 |
25.4 |
|
SQ. DRIVE (b) |
14 |
20.5 |
26.5 |
|
HEAD (h) |
66 |
66.8 |
71.5 |
83.1 |
54 |
55.3 |
64.8 |
|
HEAD (R) |
12 |
13 |
14.5 |
17 |
23 |
60 |
|
HOOK (d) |
26 |
30 |
38 |
|
HOOK (ℓ ) |
90 |
100 |
160 |
|
WEIGHT [kg] |
0.95 |
1.2 |
1.45 |
2.2 |
3.5 |
4 |
6 |
7.8 |
8.5 |

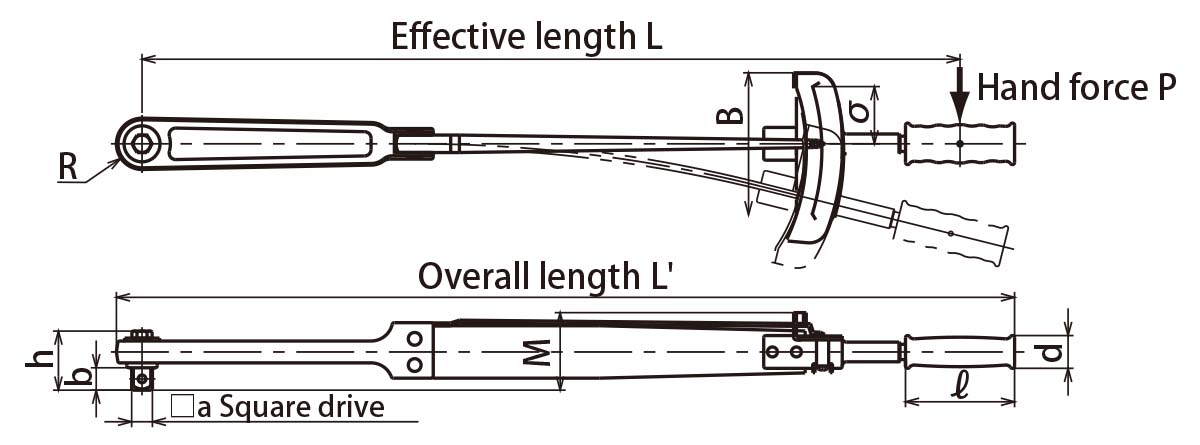

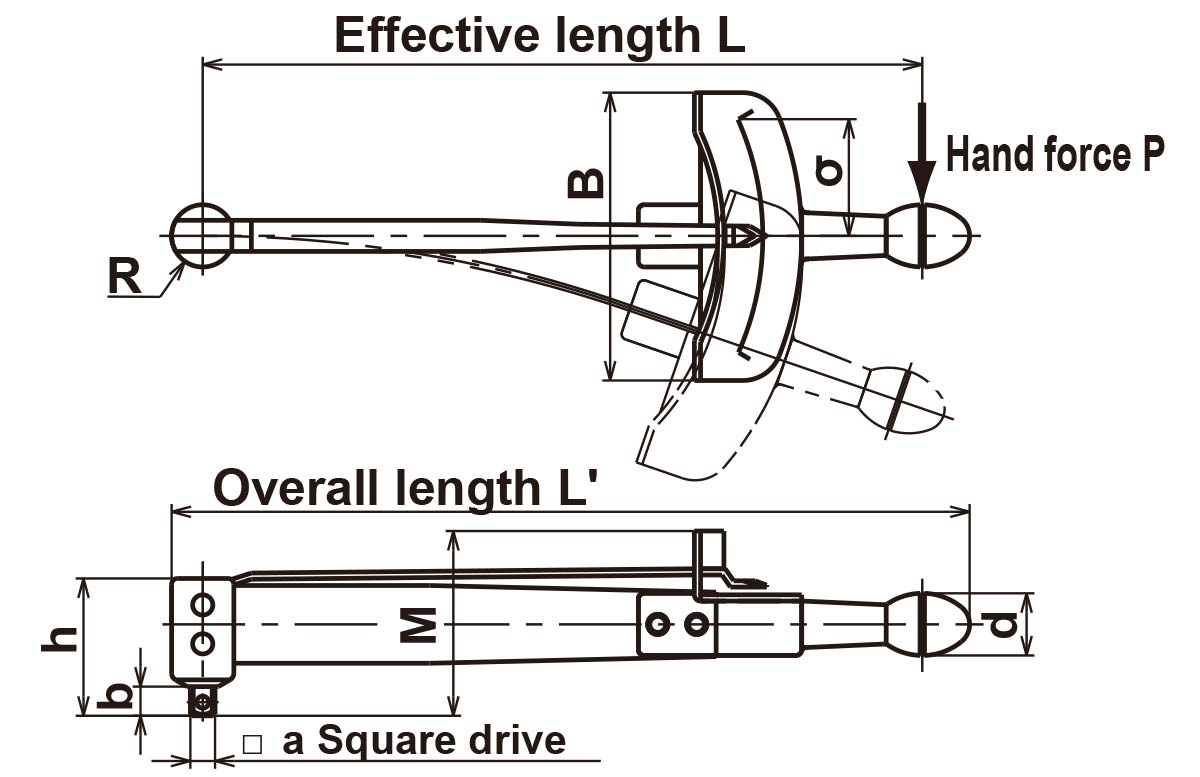

Dimensions
SF40CN～12N
F420N,560N
F23N～280N
F700N～1000N
