Swivel Type Angle Plate Obishi ND101

Mã sản phẩm: ND101
Tình trạng:

Swivel Type Angle Plate Obishi ND101

Liên hệ
Liên hệ
Thông tin sản phẩm hướng dẫn đặt hàng & vận chuyển

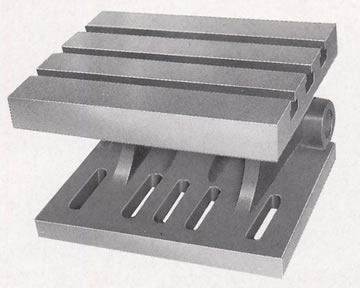

Swivel Type Angle Plate

[ Stock No：106 ]
Swivel Type Angle Plate

  • Inclination Angle from 30 to 90 degrees is possible.
  • Comes with main scale graduation (1 degrees) and vernier scale (5 percent)
  • Parallelism of the upper surface and base surface is guaranteed.
  • T Groove for work piece locking. (3 places)
Code No. Model Measurement
(L×W×Hmm)		 Parallel Squareness
(μm)		 Mass
(kg)
ND101 OK-1 200×225×170 20 25.0
