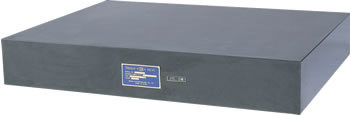

Bàn đá ( Precision Granite Surface Plate) Obishi

Mã sản phẩm:

Tình trạng:

Bàn đá ( Precision Granite Surface Plate) Obishi

Liên hệ

Thông tin sản phẩm hướng dẫn đặt hàng & vận chuyển

Model Grade 00: Obishi BA101, BA102, BA103, BA104, BA105, BA106, BA107, BA108, BA109, BA110, BA111, BA112
Model Grade 0: Obishi BA201, BA202, BA203, BA204, BA205, BA206, BA207, BA208, BA209, BA210, BA211, BA212
Model Grade 1: Obishi BA301, BA302, BA303, BA304, BA305, BA306, BA307, BA308, BA309, BA310, BA31, BA312

Precision Granite Surface Plate

[ Stock No：900 ]

Precision Surface Plate using granite gabbro
It is very hard and superior in wear resistance. secular distortion is minimal, it does not rust, as well as other advantages.
In addition to standard products, we also manufacture with special measurements, hole drilling, screw machining, etc.
We can also make special mounts using square pipe.

Grade Measurement (mm)	Grade 00		Grade 0		Grade 1		Bearing	Mass (kg)
Grade Measurement (mm)	Code No.	Flatness (μm)	Code No.	Flatness (μm)	Code No.	Flatness (μm)	L1×L2 (mm)	Mass (kg)
300×300×75	BA101	2.0	BA201	4.0	BA301	8	240×240	21
450×300×100	BA102	2.0	BA202	4.5	BA302	9	390×240	41
500×500×100	BA103	2.5	BA203	5.0	BA303	10	420×420	75
600×450×100	BA104	2.5	BA204	5.0	BA304	10	500×370	81
600×600×125	BA105	2.5	BA205	5.0	BA305	10	500×500	135
750×500×125	BA106	3.0	BA206	5.5	BA306	11	630×420	141
1000×750×150	BA107	3.0	BA207	6.5	BA307	13	700×630	338
1000×1000×150	BA108	3.5	BA208	7.0	BA308	14	700×700	450
1500×1000×200	BA109	4.0	BA209	8.0	BA309	16	1100×700	900
2000×1000×250	BA110	4.5	BA210	9.5	BA310	19	1500×700	1500
2000×1500×300	BA111	5.0	BA211	10.0	BA311	20	1500×1000	2700
3000×1500×300	BA112	6.5	BA212	12.5	BA312	25	2400×1000	4050
