Cast Iron Triangle Type Square Plate Obishi GF101, GF102, GF103, GF104, GF105

Mã sản phẩm: GF101, GF102, GF103, GF104, GF105
Tình trạng:

Cast Iron Triangle Type Square Plate Obishi GF101, GF102, GF103, GF104, GF105

Liên hệ
Liên hệ
Thông tin sản phẩm hướng dẫn đặt hàng & vận chuyển

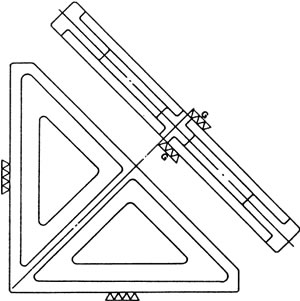

Cast Iron Triangle Type Square Plate

[ Stock No：114 ]
Cast Iron Triangle Type Square Plate

  • Perpendicularity of 2 surfaces is accurately finished.
  • Suitable for machine tool assembly and inspection.
  • Accuracy surface has lapping finishing

*We also manufacture similar products with special measurement.

Code No. Measurement
(H×L×Wmm)		 Squareness
(μm)		 Side surface and Use surface
Parallelism (μm)		 Mass
(kg)
GF101 300×300×45 3 10 9
GF102 500×300×50 3 15 16
GF103 500 ×500×60 5 15 37
GF104 1000×750×80 7 25 80
GF105 1000×1000×100 8 25 85
