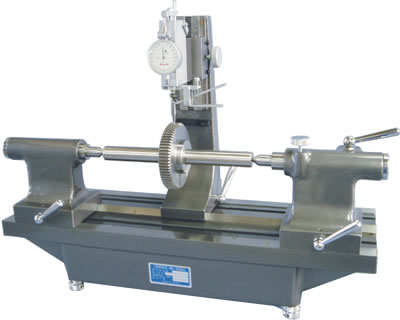

Deflection Tester for Gear (SR-Type)
[ Model：DEFLECTION TESTER FOR GEAR ][ Stock No：304 ]
-
For gear circle pitch defelction measurement
-
Dial Gauge gripping chuck moves up/down due to rack gear.
-
The probe easily moves up/down using the lever.
-
7 probes are supplied by default. (Module 1 to 4, 0.5 interval)
*Dial gauge and test bar are not included.
*We can manufacture special measurement probles according to your requirement.
|
Code No. |
Model |
Full Lenght
(Lmm) |
Center Distance
(mm) |
Effective Center
Height (mm) |
Use Center |
Parallellism
(μm) |
Weight
(kg) |
|
SR101 |
SR-1 |
640 |
300 |
100 |
Carbide MT#2 |
4 |
72 |
