Thiết bị đo tâm và độ đảo Obishi Rack Slide Type Bench Centers, model SML101, SML102, SML103, SML100

Mã sản phẩm: SML101, SML102, SML103, SML100
Tình trạng:

Thiết bị đo tâm và độ đảo Obishi Rack Slide Type Bench Centers, model SML101, SML102, SML103, SML100

Liên hệ
Liên hệ
Thông tin sản phẩm hướng dẫn đặt hàng & vận chuyển

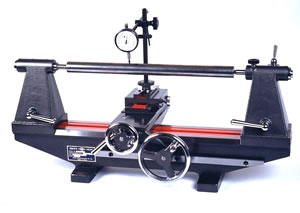

Rack Slide Type Bench Centers (ML-Type)

[ Model：RACK SLIDE TYPE BENCH CENTERS ][ Stock No：102 ]
Rack Slide Type Bench Centers (ML-Type)

  • Dial Gauge Stand can be moved left or right using a rack attched handle.
  • Dial Gauge Stand can be moved forward and backward using the handle.
  • Parallellism between table upper surface and center is assured.
  • Center entry/exit is performed by one touch lever.

*Dial gauge and test bar are not included.

Code No. Model Full Lenght
(Lmm)		 Center Distance
(mm)		 Effective Center Height
(mm)		 Use Center Height Parallellism
(μm)		 Weight
(kg)
SML101 ML-1 680 400 110 Carbide MT#1 6 43
SML102 ML-2 1220 800 180 Carbide MT#2 8 90
SML103 ML-3 1645 1190 240 Carbide MT#3 10 145
SML100 ML-P 560 290 80 MT#1 5 22
