Ultra Precision Steel Straight Edge, Obishi EB-1001, EB-1002, EB-1003, EB-1004

Mã sản phẩm: EB-1001, EB-1002, EB-1003, EB-1004
Tình trạng:

Ultra Precision Steel Straight Edge, Obishi EB-1001, EB-1002, EB-1003, EB-1004

Liên hệ
Liên hệ
Thông tin sản phẩm hướng dẫn đặt hàng & vận chuyển

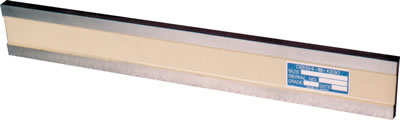

Ultra Precision Steel Straight Edge


Ultra Precision Steel Straight Edge

  • Can be used as a master forAxis Straightness inspectionin various machine tools, semi conductor related equipment, inspection Equipment, etc.
  • Can be used as a straightness standard during Axis assembly adjustment.
  • Can be used as inspection master for machine parts.
  • The use surface has Precision lapping finishing
  • Precision surface is 1 surface only
  • The precision surface is graduated excluding 20mm for both edges.
  • Hardened
Code NO. Nominal Measurement（L×H×Wmm） Straightness (μm) Mass (kg)
EB-1001 300 340×50×12 1.0 1.2
EB-1002 500 540×60×12 1.0 1.9
EB-1003 750 790×70×15 1.0 5.4
EB-1004 1000 1040×70×15 1.0 7.1
